Brass FT. Tee

Product Name: PVC_Brass FT. Tee

Type: Class 13.5

Material: Polyvinyl Chloride.

Brand: SCG

Color: Blue

Size: DN18-DN100 (1/2'' - 4'')

Unit: Piece

Standard: TIS 17-2532

1. Usage: PVC pipe is plumbing made from polyvinyl chloride (PVC) thermoplastic material. PVC piping is often used in drainage, water supply, irrigation, chemical handling, waste management, vent tubing and duct work. PVC pipe is manufactured in various sizes that range from 1/2 inch up to 10 inches in diameter. Some of the most common sizes are 1/2 inch, 1.1/2 inch, 3 inch, 4 inch, 6 inch, 8 inch and 10 inch PVC pipe.

2. Not suitable for the use of more than 60 degrees celcius water. TOYO PVC Pipes and Fittings earn TIS 17-2532 standard. Blue color. Suitable for drinking water pipe, pressured pvc pipe, drainage system pipe, etc.

3. Image

4. Detail of Drawing

5. Technical Parameter

6. TOYO INDUSTRY LAO FACTORY SOLE., LTD

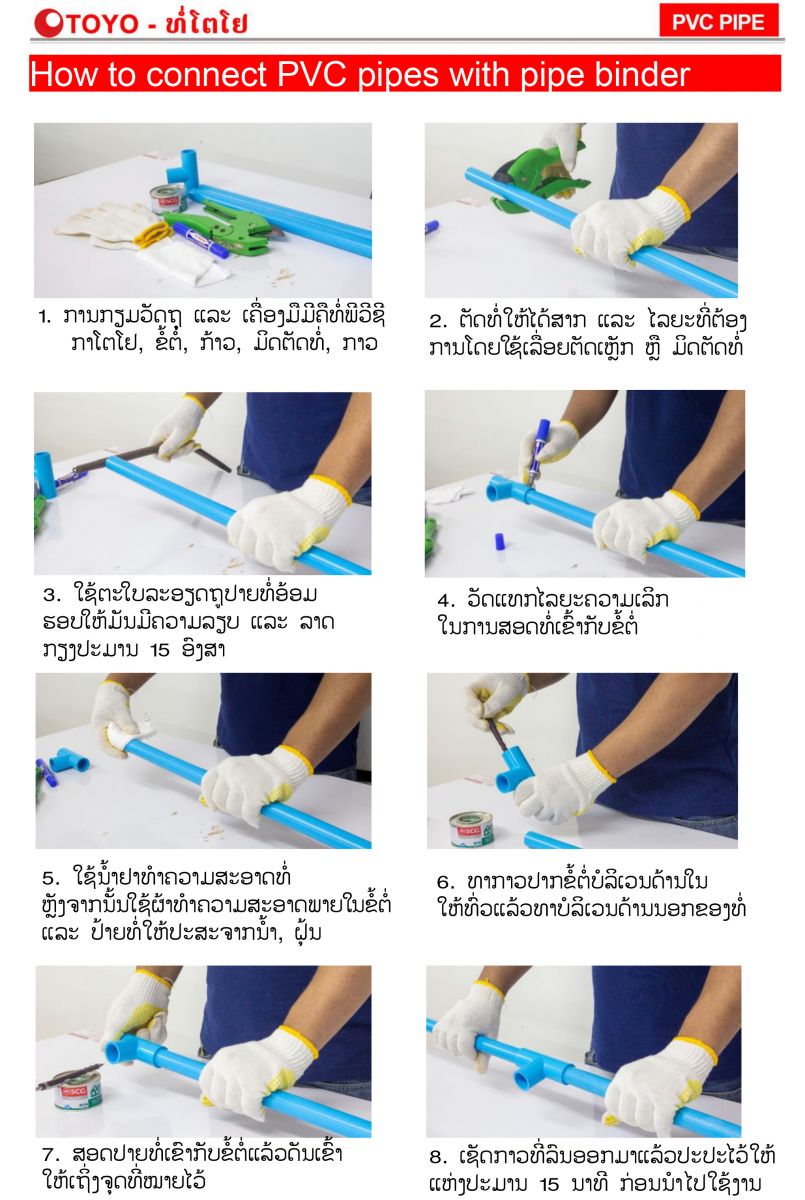

1. Preparation of materials and tools includes: TOYO PVC pipes, fittings, glue, pipe cutter, and adhesive.

2. Cut the pipe straight and to the desired length using a saw or pipe cutter.

3. Use sandpaper to smooth the edge of the pipe around the end and bevel it at approximately 15 degrees

4. Measure and mark the insertion depth for connecting the pipe to the fitting

5. Use cleaning solution to clean the pipe, then wipe the inside of the fitting and the pipe end with a cloth to remove any water and dust

6. Apply glue thoroughly to the inner surface of the fitting, then apply it to the outer surface of the pipe end

7. Insert the pipe end into the fitting and push it in until it reaches the marked point.

8. Wipe off any excess glue and let it dry for about 15 minutes before use.
